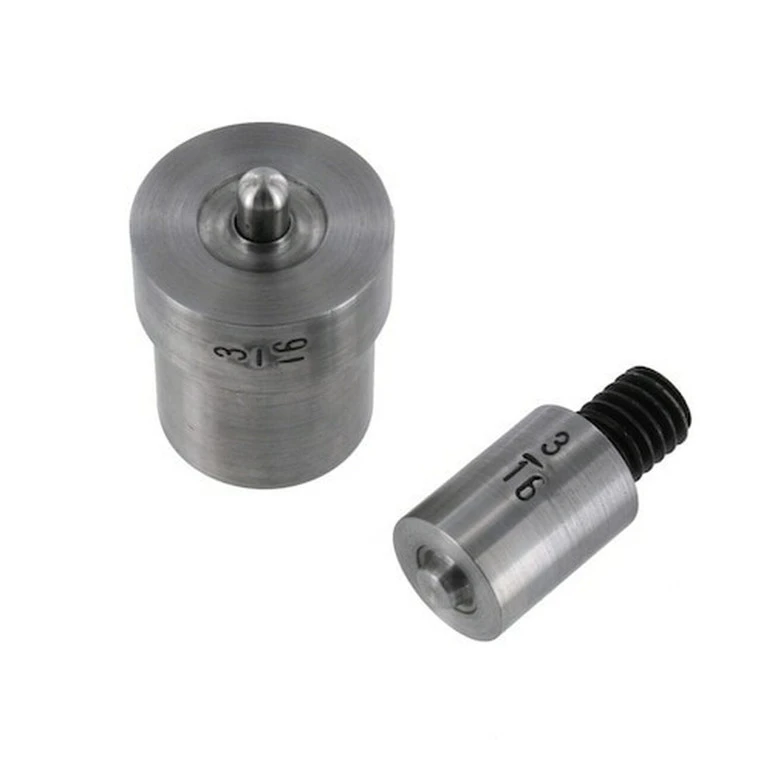

BG Grommet Setter Die, Multiple Sizes ***Requires Hand Tool Post & Base Or BG Hand Press***

Buckleguy Grommet Setter Dies

Requires hand tool post & base or BG hand press sold separately.

• BG Hand Press
• BG Hand Tool Post & Base

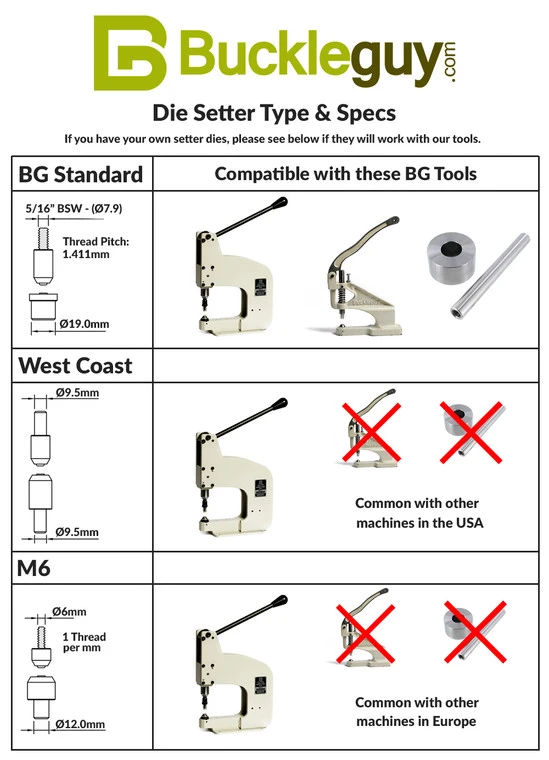

Die Size Specifications (Attachment Type). Image chart also above:

• BG Standard (Fits BG tools and machines)
• Diameter of upper die (threaded): 7.9mm (1.411mm thread pitch)
• Diameter of bottom die (not threaded): 18.9mm
• West Coast (Does not fit BG tools. But is used on most non-BG tools)
• Diameter of upper die (not threaded): 9.5mm
• Diameter of bottom die (not threaded): 9.5mm

Setter Die Sizes:



• 1/8″ (#0000) – Used with 1/8″ Grommets
• 3/16″ (#00) – Used with 3/16″ Grommets
• 1/4″ (#0) – Used with 1/4″ Grommets
• 5/16″ (#1) – Used with 5/16″ Grommets
• 3/8″ (#2) – Used with 3/8″ Grommets
• 1/2″ (#4) – Used with 1/2″ Grommets

Suggested Hole Punch – 3 Options: Select same hole punch size as grommet

• 147 Round Punch
• 245 Belt Punch
• Hole Punch w/ Screw

Material: Stainless Steel
