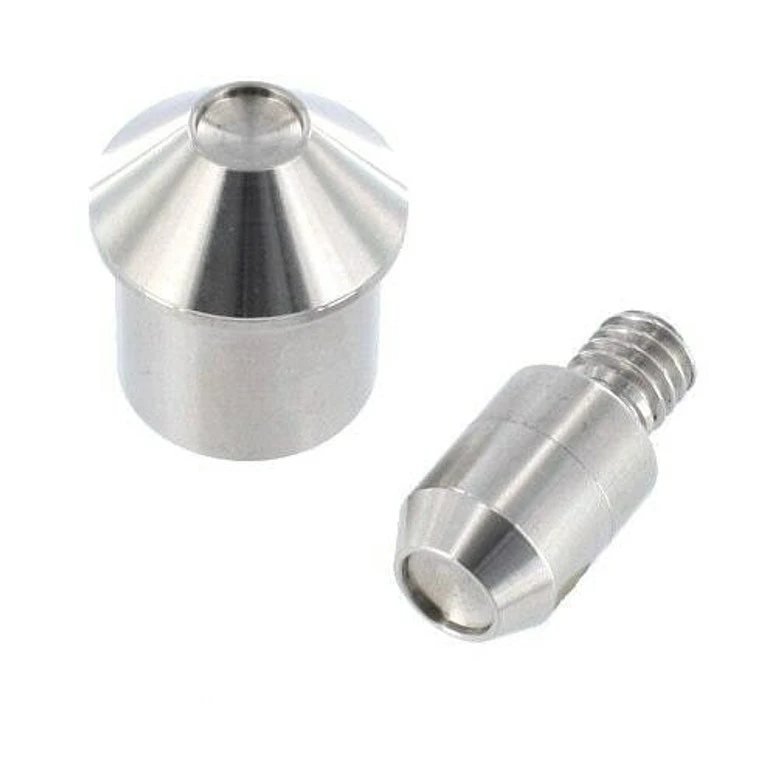

Buckleguy Rivet Setter Dies
***Requires hand tool post & base or BG hand press sold separately***
- BG Hand Press
- BG Hand Tool Post & Base

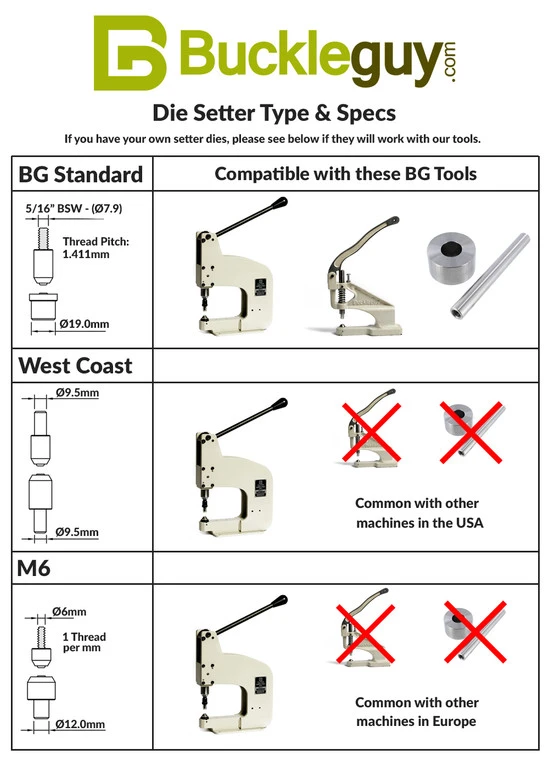

Die Size Specifications (Attachment Type). Image chart also above:
- BG Standard (Fits BG tools and machines)
- Diameter of upper die (threaded): 7.9mm (1.411mm thread pitch)
- Diameter of bottom die (not threaded): 18.9mm
- West Coast (Does not fit BG tools. But is used on most non-BG tools)
- Diameter of upper die (not threaded): 9.5mm
- Diameter of bottom die (not threaded): 9.5mm
Custom fit to the following rivets:
- 4.7mm – Used with 4.7mm Cap Rivets
- 6mm – Used with 6mm Cap Rivets
- 7mm – Used with 7mm Cap Rivets
- 9.2mm – Used with 9.2mm Cap Rivets
- 11mm – Used with 11mm Cap Rivets
Suggested Hole Punch:
- 4.7mm & 6mm Cap Rivets: 3/32″ hole punch
- Click here for 3/32″ Single Hole Punches: Option 1 and Option 2
- 7mm, 9mm & 11mm Cap Rivets: 1/8″ hole punch
- Click here for 1/8″ Single Hole Punches: Option 1 and Option 2
- Click here for: Rotary Hole Punches
- We recommend a rotary punch as you have 6 punch sizes in one tool. And different rivet sizes require different holes sizes, so a rotary punch is quite versatile.
Material: Stainless Steel
