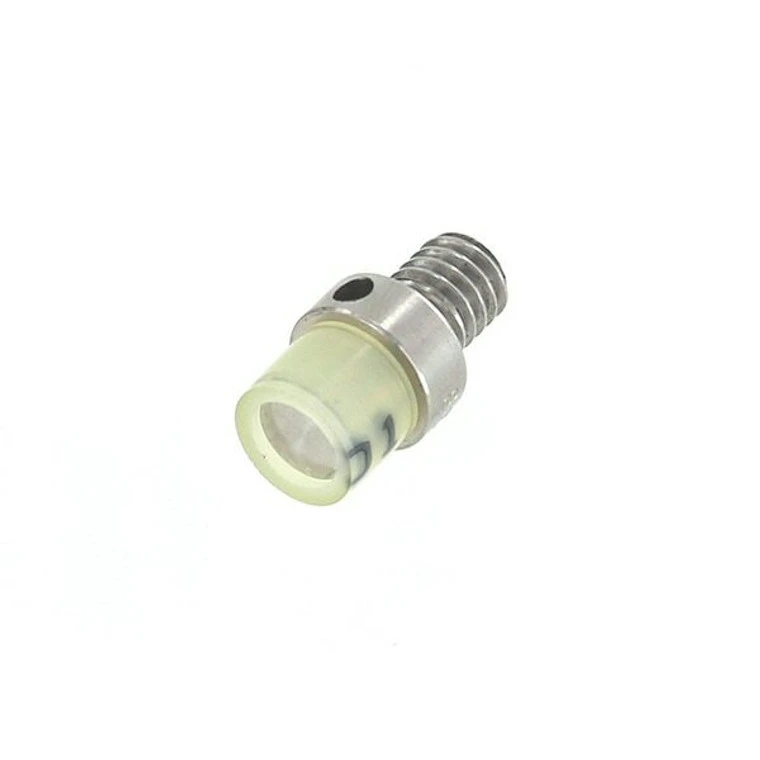

BG Rivet Setter Die for RT8203 Tubular Rivets
This side of the tool is used with the post part of the rivet. For setting, you also need to choose the other side of the tool:
- Option 1: Used with Cap: Anvil
- Option 2: Used without Cap: Splash
You will also need a hand tool post & base or BG hand press sold separately:
- BG Hand Press
- BG Hand Tool Post & Base
Used with our Tubular Rivets:
- Tubular Rivets – view all

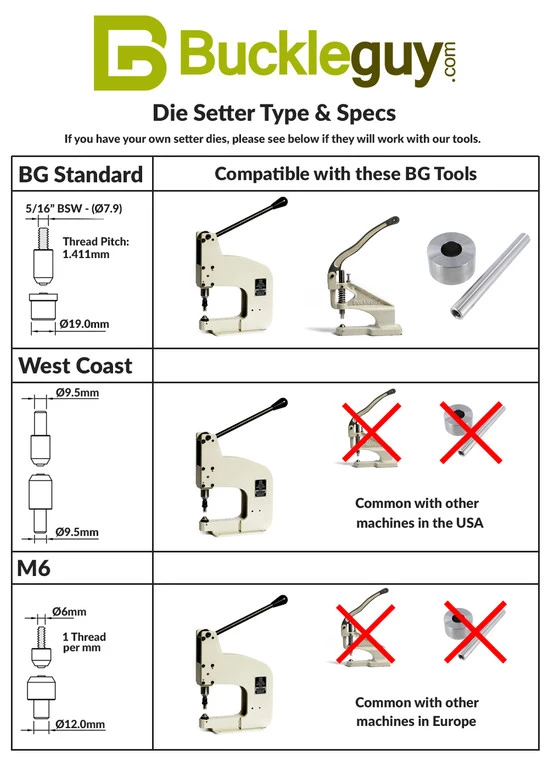

Die Size Specifications (Attachment Type). Image chart also above:
- BG Standard (Fits BG tools and machines)
- Diameter of upper die (threaded): 7.9mm (1.411mm thread pitch)
- Diameter of bottom die (not threaded): 18.9mm
- West Coast (Does not fit BG tools. But is used on most non-BG tools)
- Diameter of upper die (not threaded): 9.5mm
- Diameter of bottom die (not threaded): 9.5mm
Material: Stainless Steel
