BG Snap Setter Die, Multiple Sizes ***Requires Hand Tool Post & Base Or BG Hand Press ***

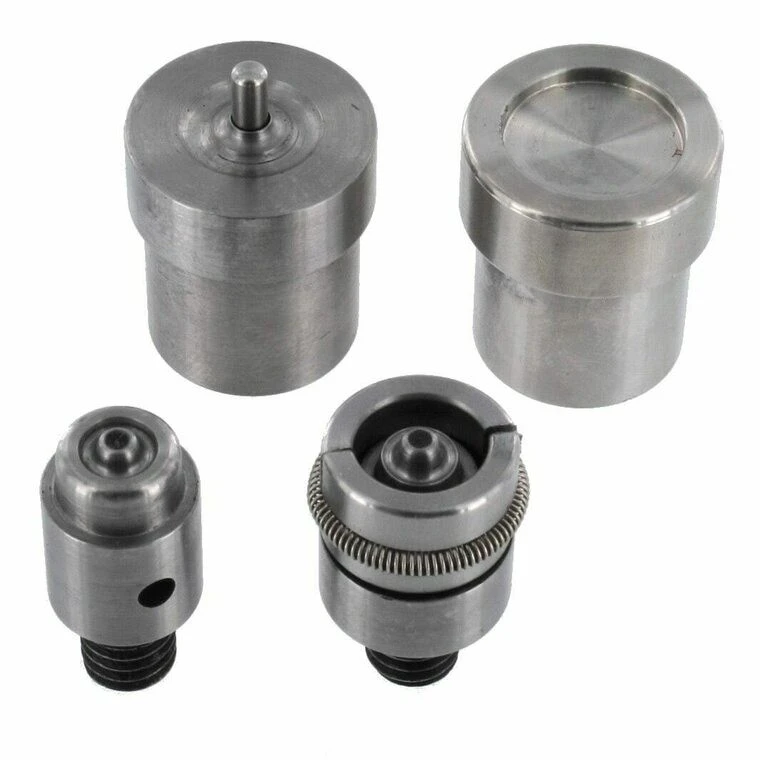

Buckleguy Snap Setter Dies

***Requires hand tool post & base or BG hand press sold separately***

• BG Hand Press
• BG Hand Tool Post & Base

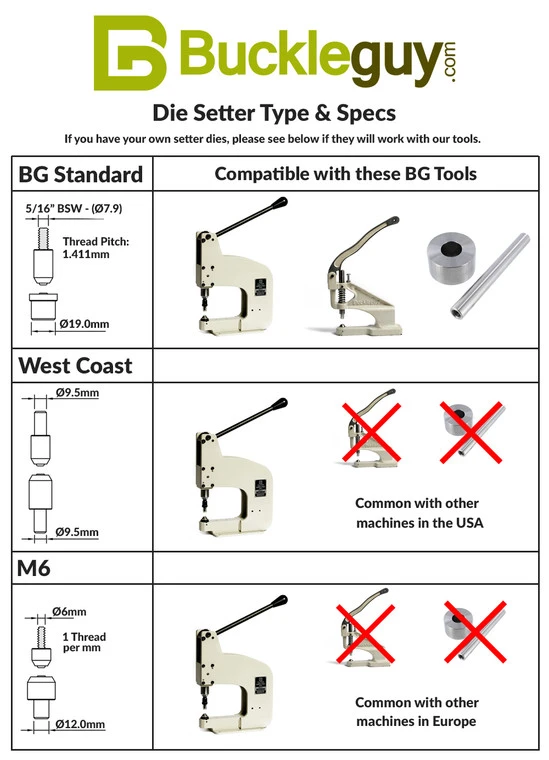

Die Size Specifications (Attachment Type). Image chart also above:

• BG Standard (Fits BG tools and machines)
• Diameter of upper die (threaded): 7.9mm (1.411mm thread pitch)
• Diameter of bottom die (not threaded): 18.9mm
• West Coast (Does not fit BG tools. But is used on most non-BG tools)
• Diameter of upper die (not threaded): 9.5mm
• Diameter of bottom die (not threaded): 9.5mm

Custom to the following snaps:

• S15B51LN – Ring Socket (Line 24 Snaps)
• S127B50-LP – Ring Socket (Line 20 Snaps)
• SN127B50-SP – Ring Socket (Short Post)
• S127B10-LP – S-Spring Socket (Long Post)
• SN127B10-SP – S-Spring Socket (Short Post)
• SN10B11 S-Spring Socket (Short Post)

Suggested Hole Punch:

• Line 24 Snaps (S15B51LN): 1/8″ hole punch
• Click here for 1/8″ Single Hole Punches: Option 1 and Option 2
• All Other Snaps: 7/64″ hole punch
• Click here for 7/64″ Single Hole Punches: Option 1 and Option 2

• Click here for: Rotary Hole Punches
• We recommend a rotary punch as you have 6 punch sizes in one tool. And different rivet sizes require different holes sizes, so a rotary punch is quite versatile.

Material: Stainless Steel
